I want to add an SSD to this pc. I don't exactly know what I'm doing here.

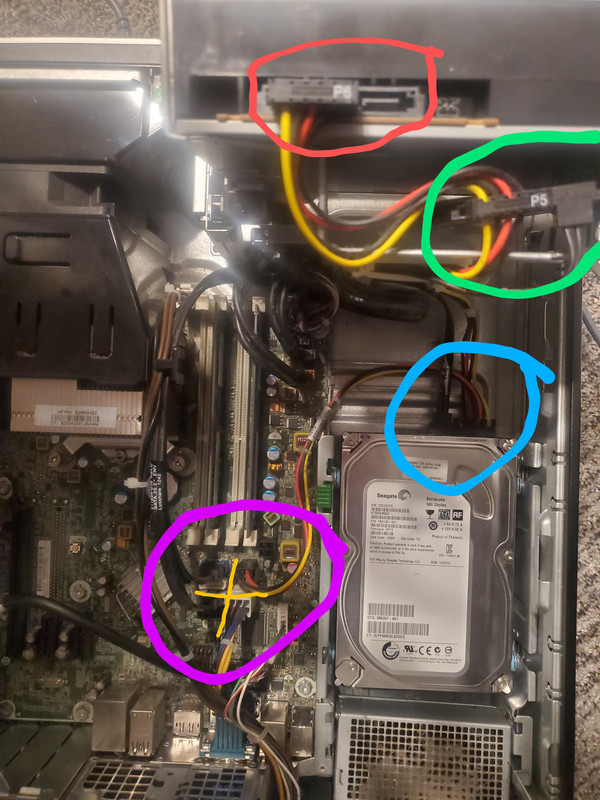

Red circle is the dvd drive connections.
Green circle is (new) SSD connections
Blue is HDD connections
Purple is where all three plug into motherboard.
Yellow quadrants:
top left is from ssd
Bottom left is from HDD
Top right is from all three dvd,SSD, and HDD
Bottom right idk I didn't follow.
The red black yellow cable has three plugs on it two were plugged in to the HDD and dvd. The middle one was open and fit the SSD so I plugged it in. Then it was missing the smaller part of the connectors (sata cable?) so I took it from the dvd drive and put it on the SSD. (You can see in the red circle it's missing).

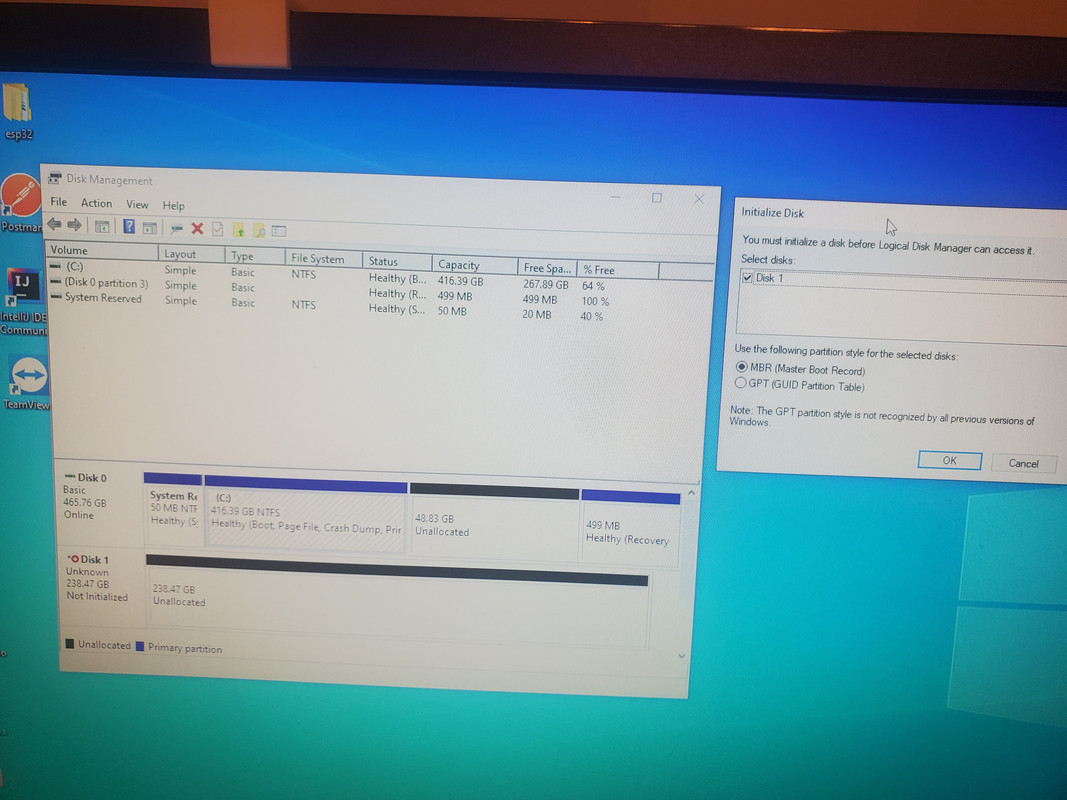

I power on the computer but I still only see the HDD as an available drive.
Where am I going wrong?
